DC Charger with big display screen

/Fast Charging DC EV Charger with Advertisement Display
COMMERCIAL CHARGER
ADVERTISEMENT SCREEN CHARGING

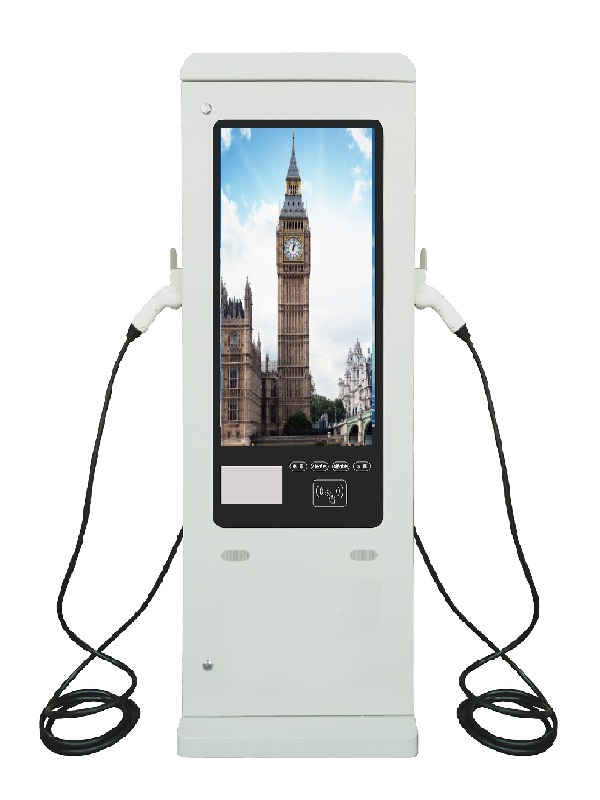

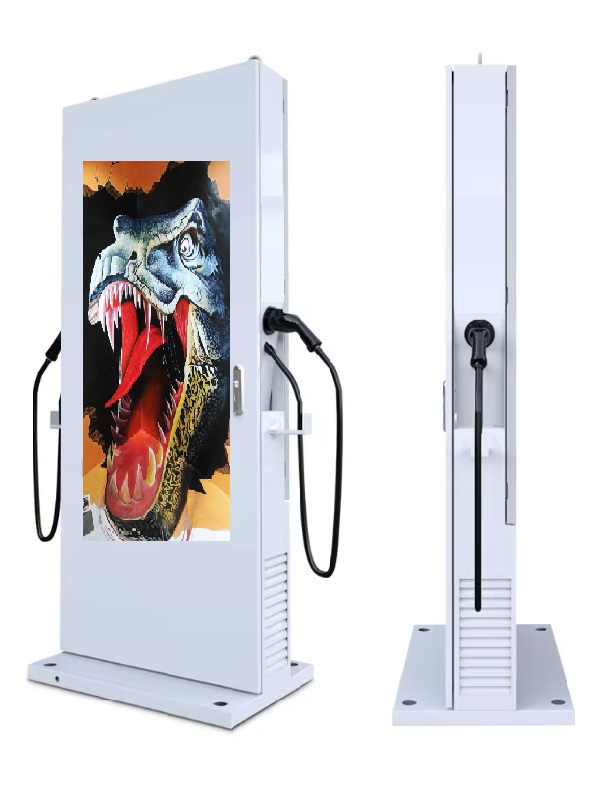

Fast Charging DC EV Charger with Advertisement Display

As the market leader in power electronics, Esafe helps you to bring energy-efficient DC fast charging designs to life.

  • Name :

    DC EV Charger
  • Item No :

    ESSZ19201080
  • Max Power :

    240KW
  • Customization :

    Yes
  • Order(MOQ) :

    1 set
  • Warranty :

    1 year
  • Standard :

    GB/T, CCS2

Our company's DC fast charging pile has four types of 60KW-90KW-120KW-150KW. The parameters of the software and hardware equipment are as the table belows:

DC Charging station

To use a DC EV charger, the driver typically needs to have a compatible charging port on their vehicle and a charging cable that can handle the high power output of the charger.



fast charger

fast EV charger



Screen Parameters
Size
43 inch LCD panel; Grade A+full new original LCD screen
Resolution
1920×1080 Full HD
Angle of view
178/178
Brightness
2000cd/m2 , Automatic light sensor system
Display Ratio
16:9
Operation Parameters
Video Interface
VGA HDMI
Audio Interface
Input and output
Temperature Control System
Precise air conditioner
Operating Temperature
-40℃ ~+50℃
Operating Humidity
5%~95%
Power Supply
AC220V /50 HZ
Motherboard
Android Operate System
Max Consumption
300W
Performance Parameter
Standby Power Consumption
≤0.1% Rated Output Power
Input Inrush Current
≤110% Rated Input Current
Efficiency
≥94%
Electrostatic Discharge Immunity
3 Grade
Electrical Transient Burst Immunity
3 Grade
Harmonic Current Limit Requirement(THD)
≤5(A Grade Device)
Waterproof Enclosure
Protection Grade
IP65
Installation
Back hanging or customized
Protection Glass
6mm AR safe glass
Optional Configurations
Configuration
I3/I5/I7/Android
Touch Foil Film
10 Touch Points
WIFI
Optional



FAQ

Q1. What is your terms of packing?

A: Neutral cartons and Customized box.

Q2. What is your terms of payment?

A: T/T, Paypal etc.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU

Q4. How about your delivery time?

A: Generally, some models are in stock. The delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. Do you test all your goods before delivery?

A: Yes, 100% test before delivered
